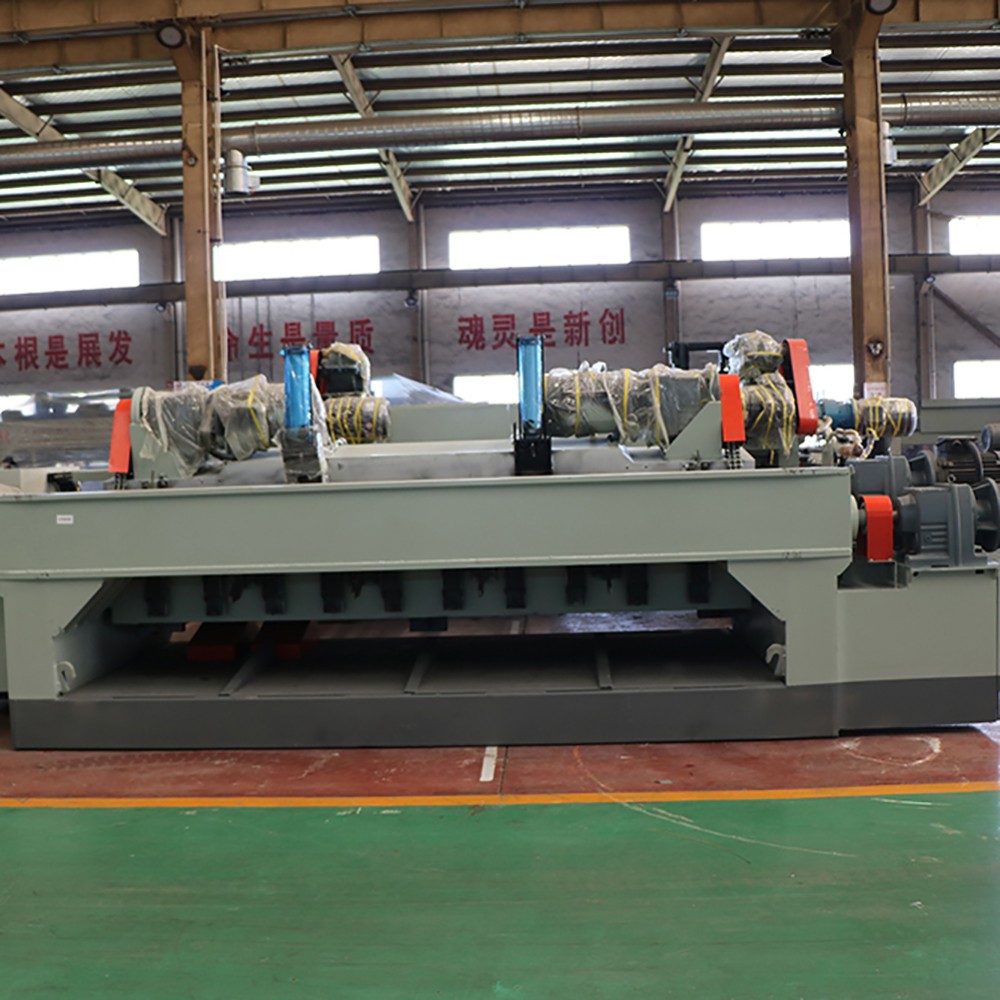

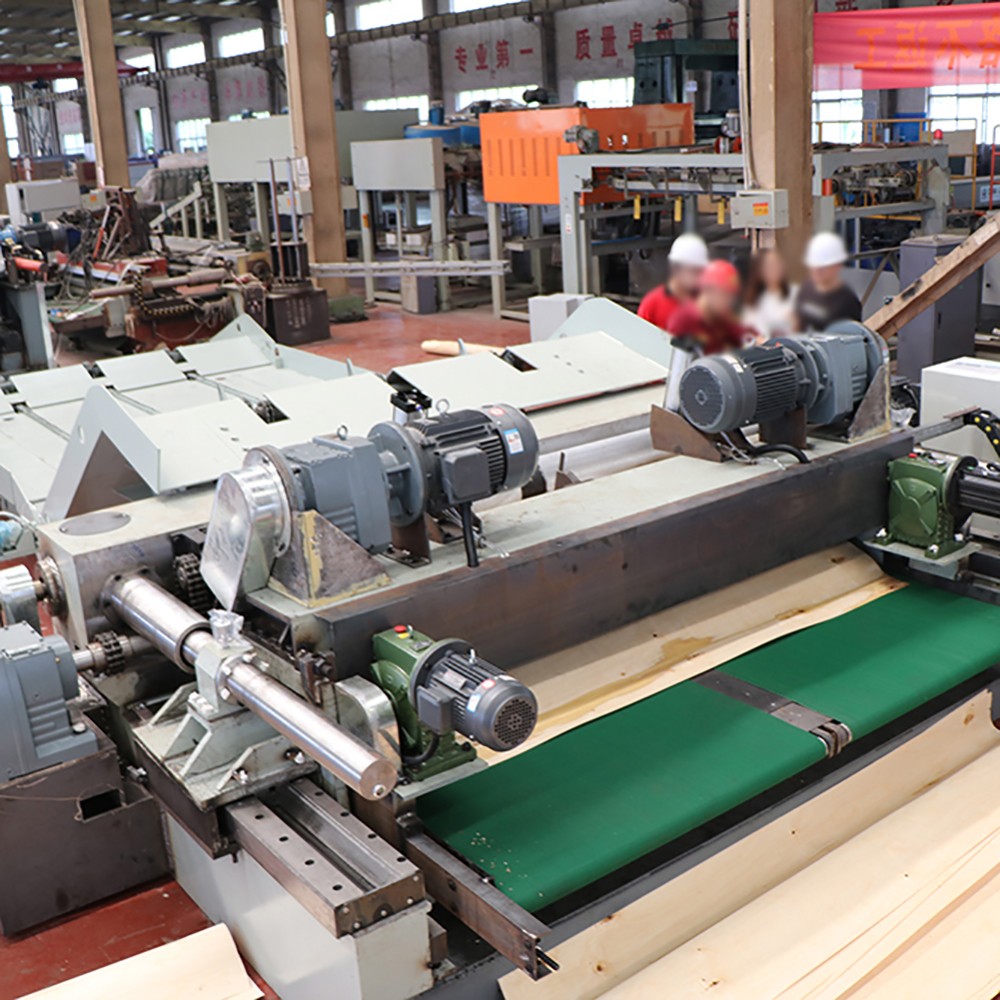

name: 2700mm veneer peeling machine
date: 2022-03-28 18:05:32
view: 123
about:

  WHO WE ARE  GTCO  Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city.    After more than 20 years' continuous innovation and development , Machinery has become an outstandi...




DETAIL



Parameter

Model

GTPM150mm

GTPM270

GTPM360

Roller Length

1300mm

2600mm

3300mm

Max Processing Log Diameter

Φ550mm

Φ600

Φ700

Min Residual wood Diameter

Φ32mm

Φ32mm

Φ30mm

Single Roller Diameter

Φ100

Φ125

Φ125

Double Roller Diameter

Φ125

Φ125

Φ125

Working thickness Range

1.0mm to 4.0mm

1.0 to 4.0mm

1.0 to 4.0mm

Peeler Blade size

150*160*13mm

2700*180*16mm

3600*180*16mm

Main Line Speed

0-80m/min ,adjustable

0-80m/min ,adjustable

0-80m/min ,adjustable

Total Power

45.4KW

60KW

86.5KW

Overall Size(L*W*H)

4500* 2250*1450mm

5800* 2250*1650mm

6500*2250*1850mm

Weight (KGS)

About 6800KG

About 9000KGS

About 13000KGS
