name: 3600mm Veneer peeling machine
date: 2021-09-26 14:12:45
view: 379
about:

　 WHO WE ARE GTCO Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city. After more than 20 years' continuous innovation and development , Machinery has become an outstandi...

86 15954388399

gtco@gtcomachinery.com

DETAIL

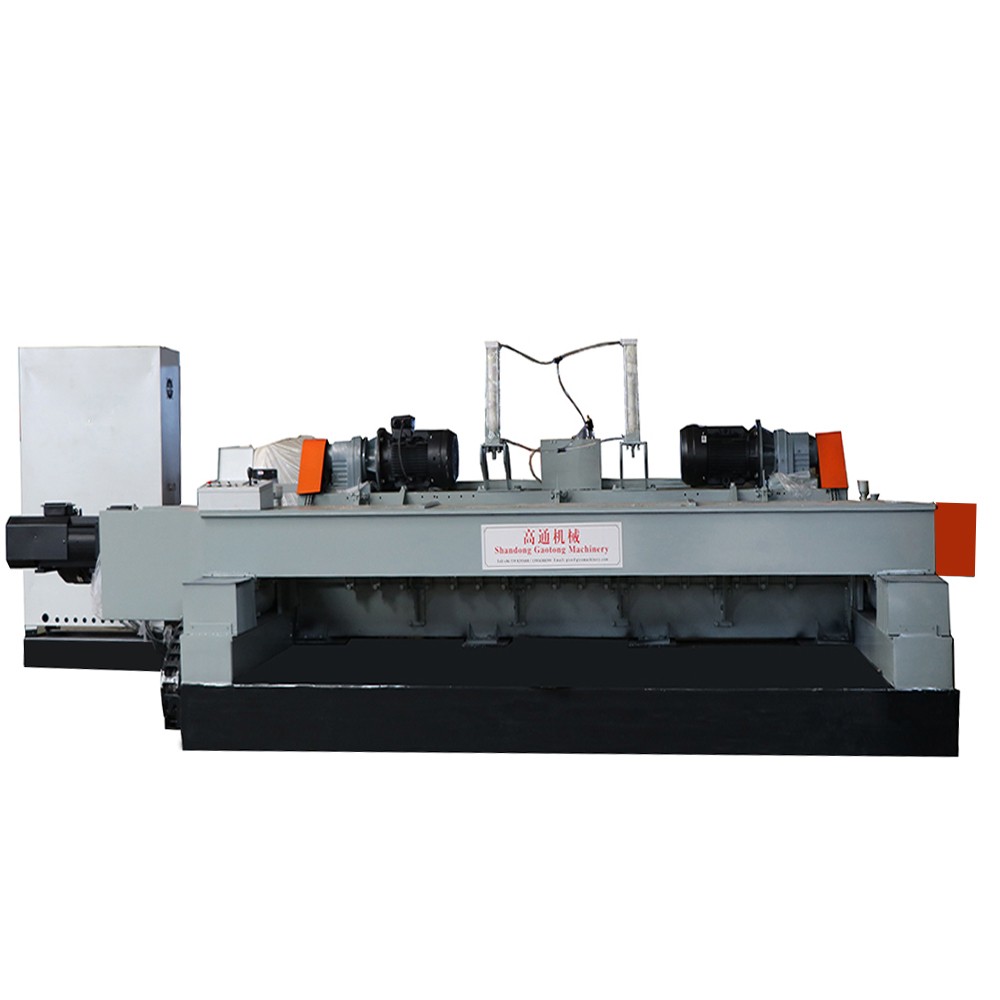

GTRD3300mm Veneer Peeling Machine
Model	GTRD3600mm
Maximum peeling length of log	3300mm
Max Diameter of Log	550mm
Residual Minimum Diameter	35mm
Blade size	360018016mm
Working thickness Range	1-3.8mm
Speed	0-80meter / min
Total Power (67KW )	Single Roller Φ125mm	R87 Reductor	11KW*2
	Double roller Φ125mm	R87 Reductor	11KW*2
	Feeding motor	R87 Reductor	15KW
	Slitting motor	RV130 Reductor	4KW
	Conveyor motor	RV130 Reductor	4KW
Overall size	650022501650mm
Gross Weight	About 11000KG
