Hot Press Machine Loading Time
hot press machine laoding time
In May 11,2022 the hot press machine finished produce.

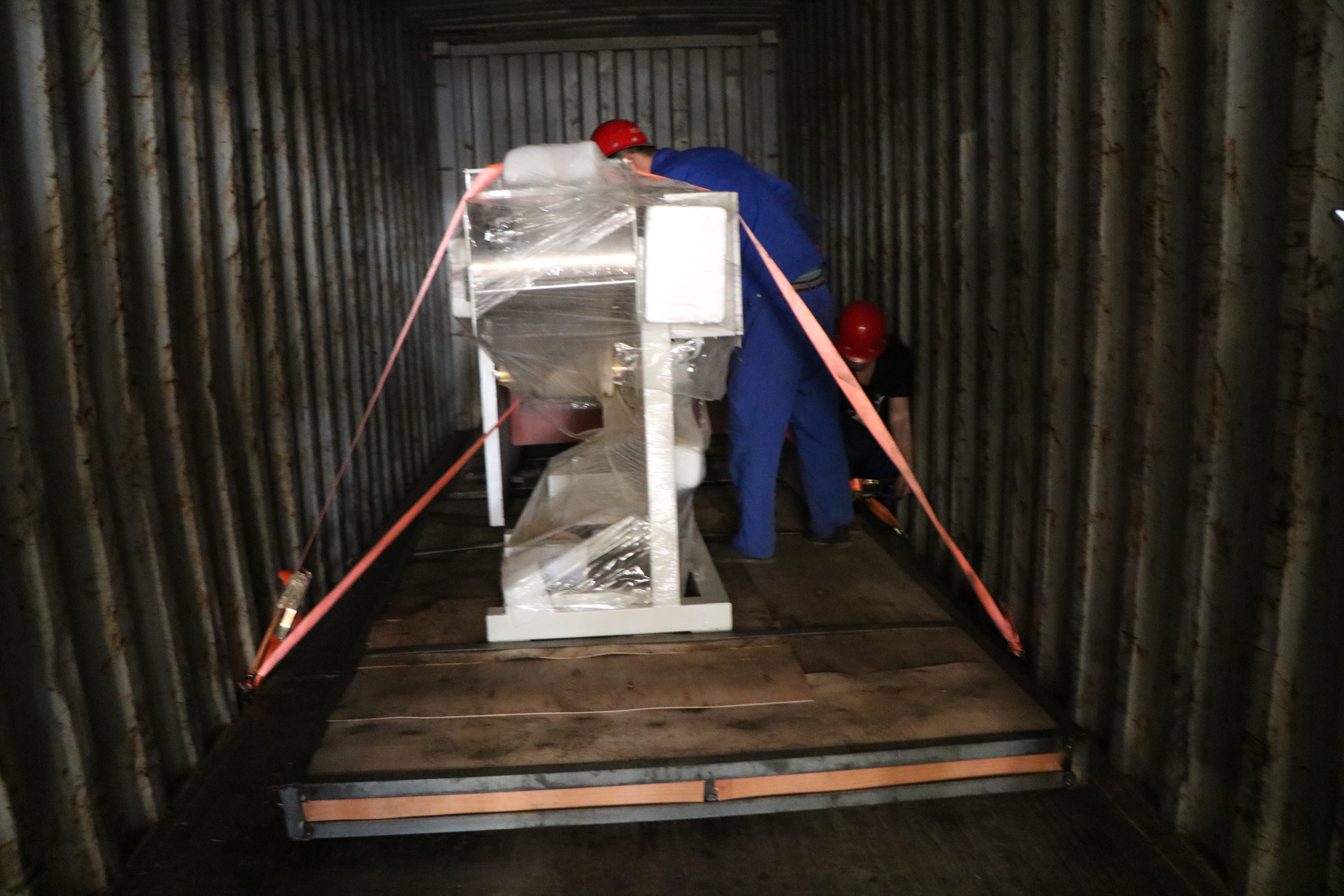

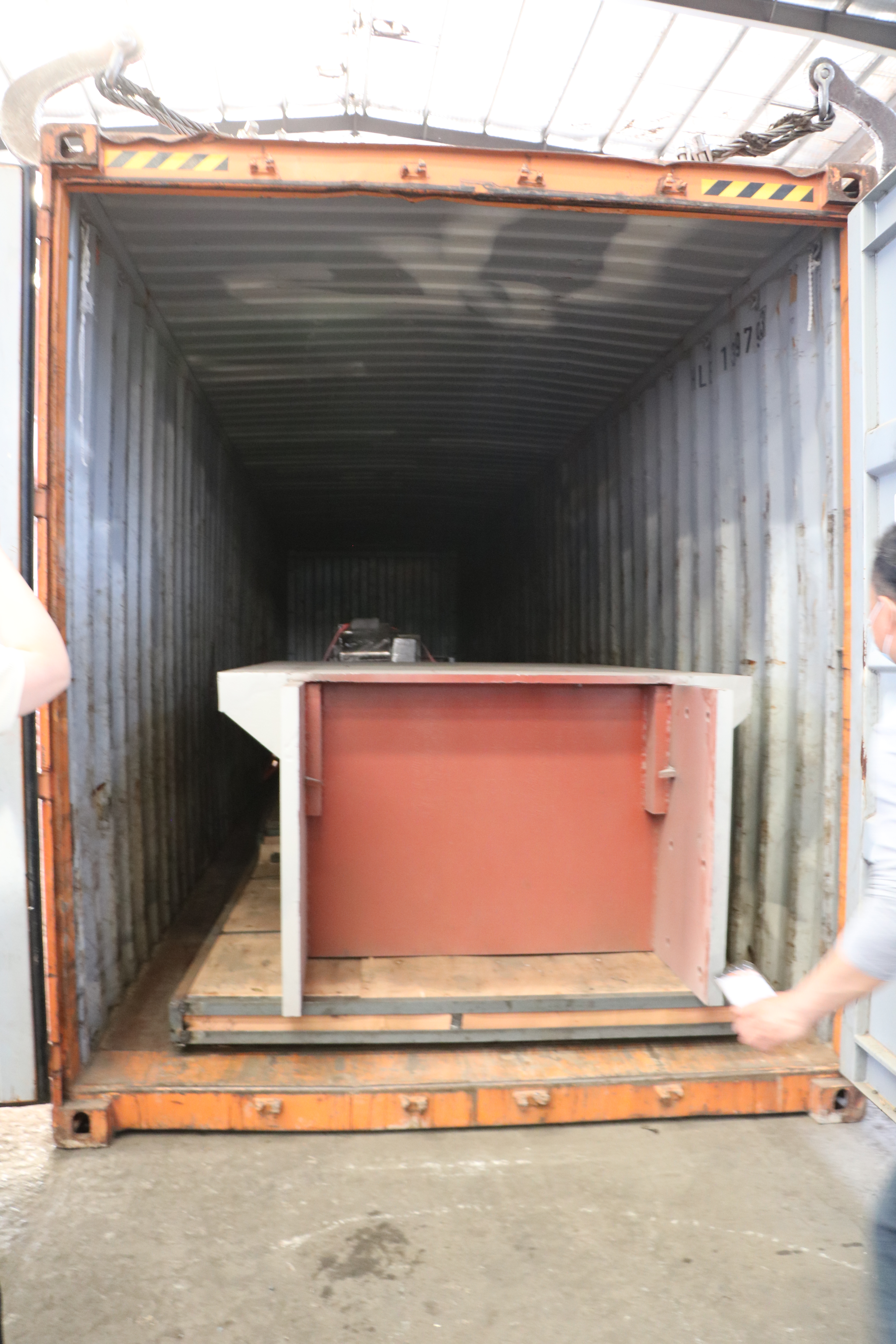

20layers hot press machine loading time.
Type | Size(ft) | Nominal Pressure(KN) | The Finished Board Size(mm) | Working Pressure(kg/cm2) | Main oil cylinder (Diameter×Quantity) |
GTH-900T | 4×8 | 9000 | 1220×2440 | ≤30 | Φ280×6 |
GTH-1200T | 4×8 | 12000 | 1220×2440 | ≤40 | Φ320×6 |
GTH-1400T | 4×8 | 14000 | 1220×2440 | ≤47 | Φ340×6 |
5×8 | 1550×2440 | ≤37 | Φ340×6 |
6×8 | 1830×2440 | ≤31 | Φ340×6 |
GTH-1600T | 4×8 | 16000 | 1200×2440 | ≤53 | Φ380×6 |
4×9 | 1200×2750 | ≤47 | Φ380×6 |
5×8 | 1500×2440 | ≤42 | Φ380×6 |
7×9 | 2100×2750 | ≤27 | Φ380×6 |
We can also design hot press machine according to your requirements. So far, our company has successfully made 6*12ft size 2800Ton lamination hot press machine |
